Mechanical Testing - Norden Techlab

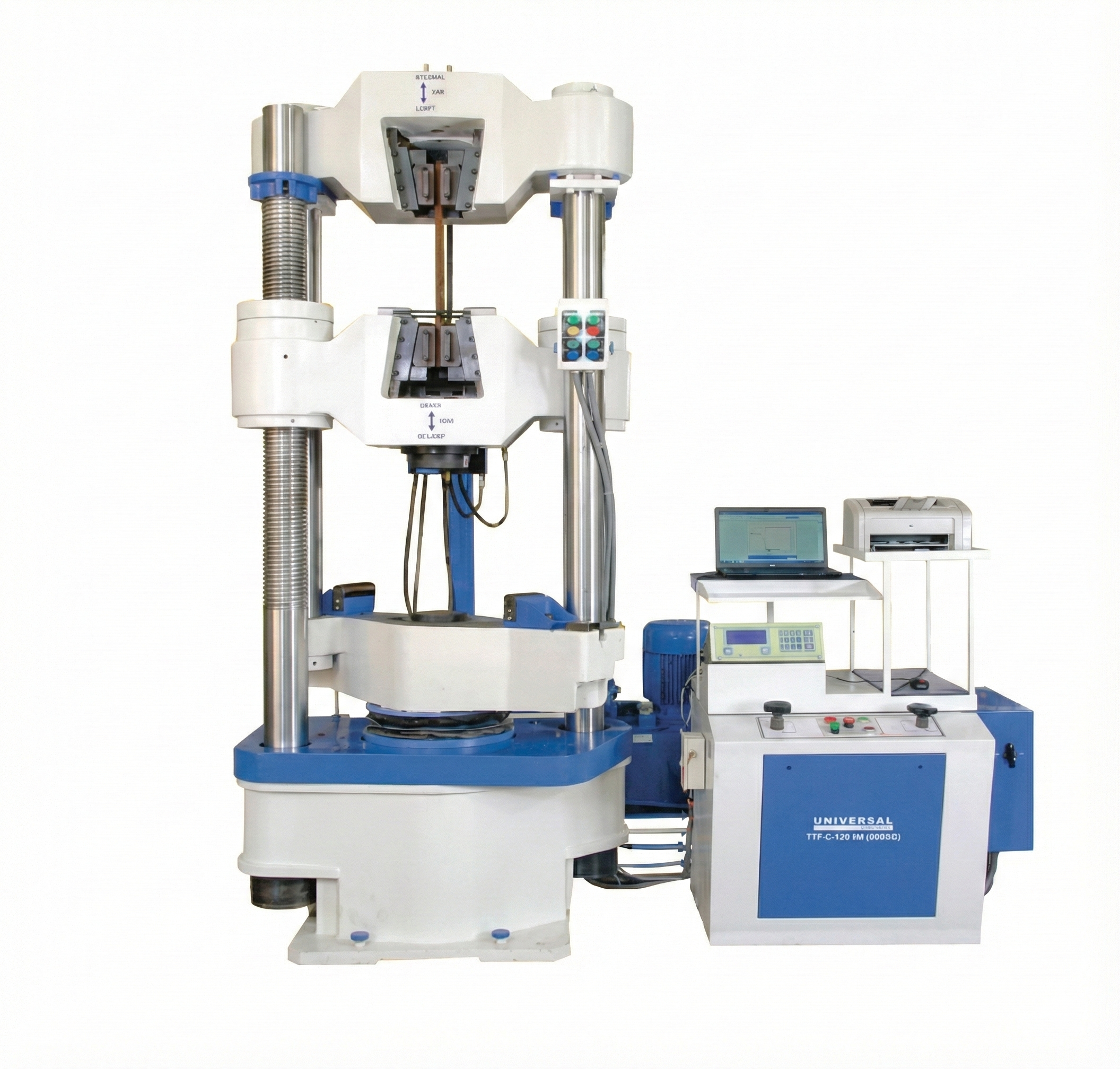

Tensile Testing

Tensile testing determines material strength and ductility by applying axial force until fracture. Commonly used to determine tensile strength, yield strength, elongation and reduction of area.

Specific Test Performed	Test Method
Tensile Strength Yield Strength Proof Strength (0.2% & 1%) % Elongation % Reduction of Area	IS 1608 – Part 1 ISO 6892-1 ISO 4136 ASTM A370 ASTM E8 / E8M ASTM B557M / ASTM B557 AWS B 4.0 ASME Sec IX AWS D1.1 / D1.1M

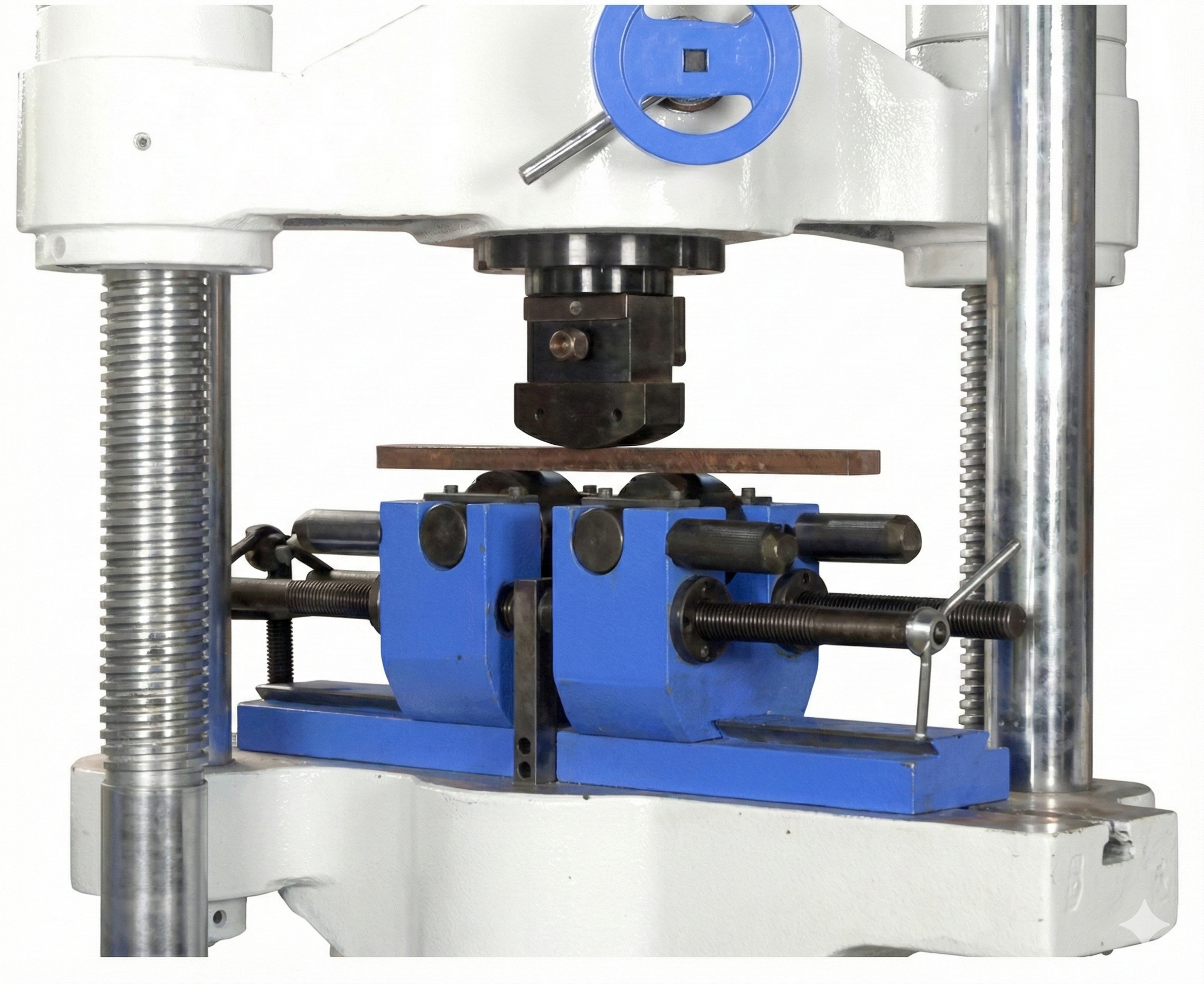

Bend Test

The bend (flexural) test evaluates ductility and resistance to fracture under bending stress.

Specific Test Performed	Test Method
Bend Test	IS 1599 ISO 7438 ISO 5173 ASTM E290 ASTM A370 ASTM E190 ASME Sec IX AWS D1.1 / D1.1M

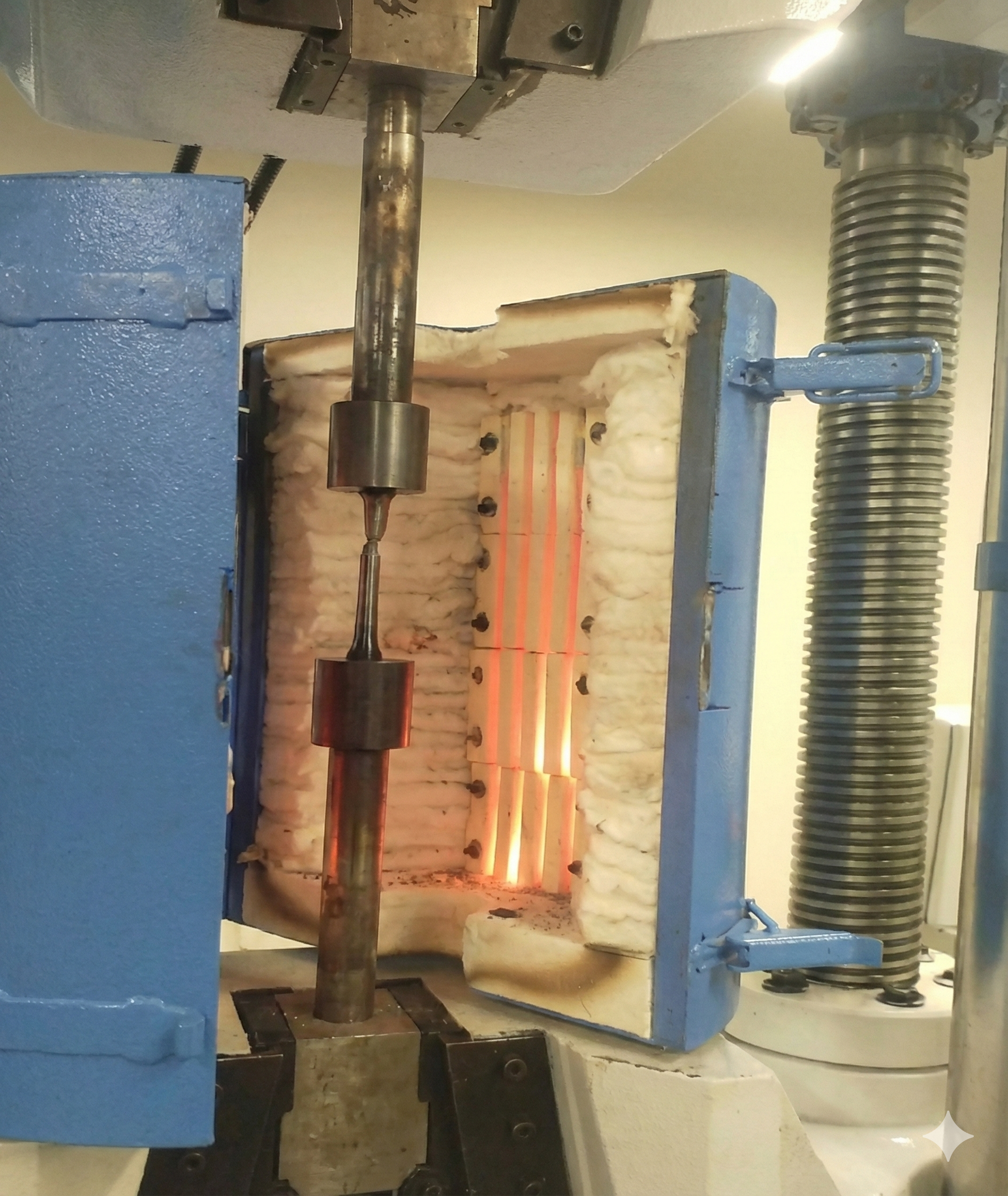

Hot Tensile — Elevated Temperature Testing

Temperature range typically from 50°C to 900°C. Used to examine strength and ductility at elevated temperatures.

Specific Test Performed	Test Method
Tensile Strength Yield Strength Proof Strength (0.2% & 1%) % Elongation % Reduction of Area	IS 1608-2 ISO 6892-2 ASTM E21

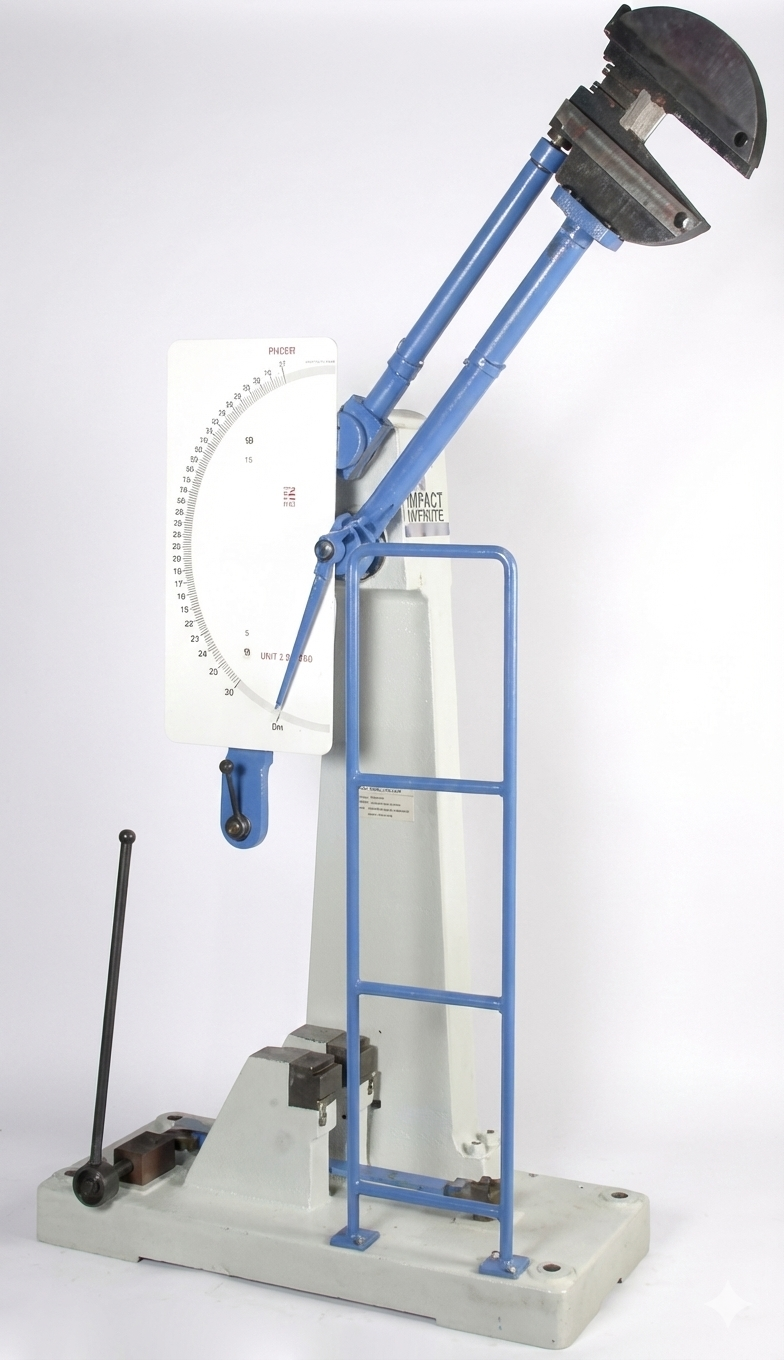

Charpy Impact Testing

Standardized method to determine energy absorbed by a specimen during fracture (toughness).

Specific Test Performed	Test Method
Charpy Impact Test Room Temperature Sub-zero	IS 1757 (Pt-1) ISO 148-1 ASTM A370 ASTM E23 ASTM A923 – Method B

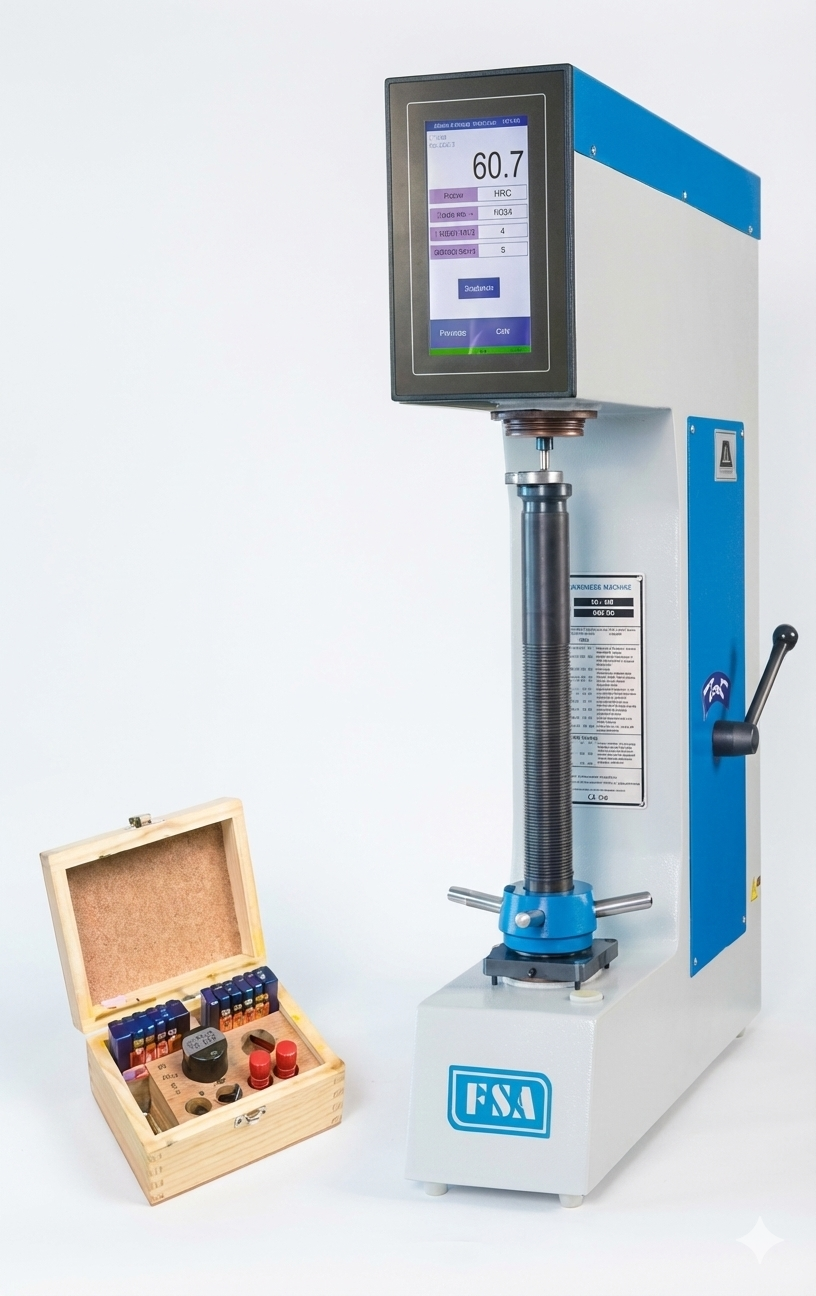

Hardness Testing

Evaluates resistance to indentation with multiple scales (Rockwell, Brinell, Vickers) and portable testers.

Specific Test Performed	Test Method
Rockwell Hardness	IS 1586 (Pt-1) ISO 6508-1 ASTM E18
Vickers Hardness	IS 1501 (Pt-1) ISO 6507-1 ASTM E92
Brinell Hardness	IS 1500 (Pt-1) ISO 6506-1 ASTM E10
Portable Hardness	ASTM E110

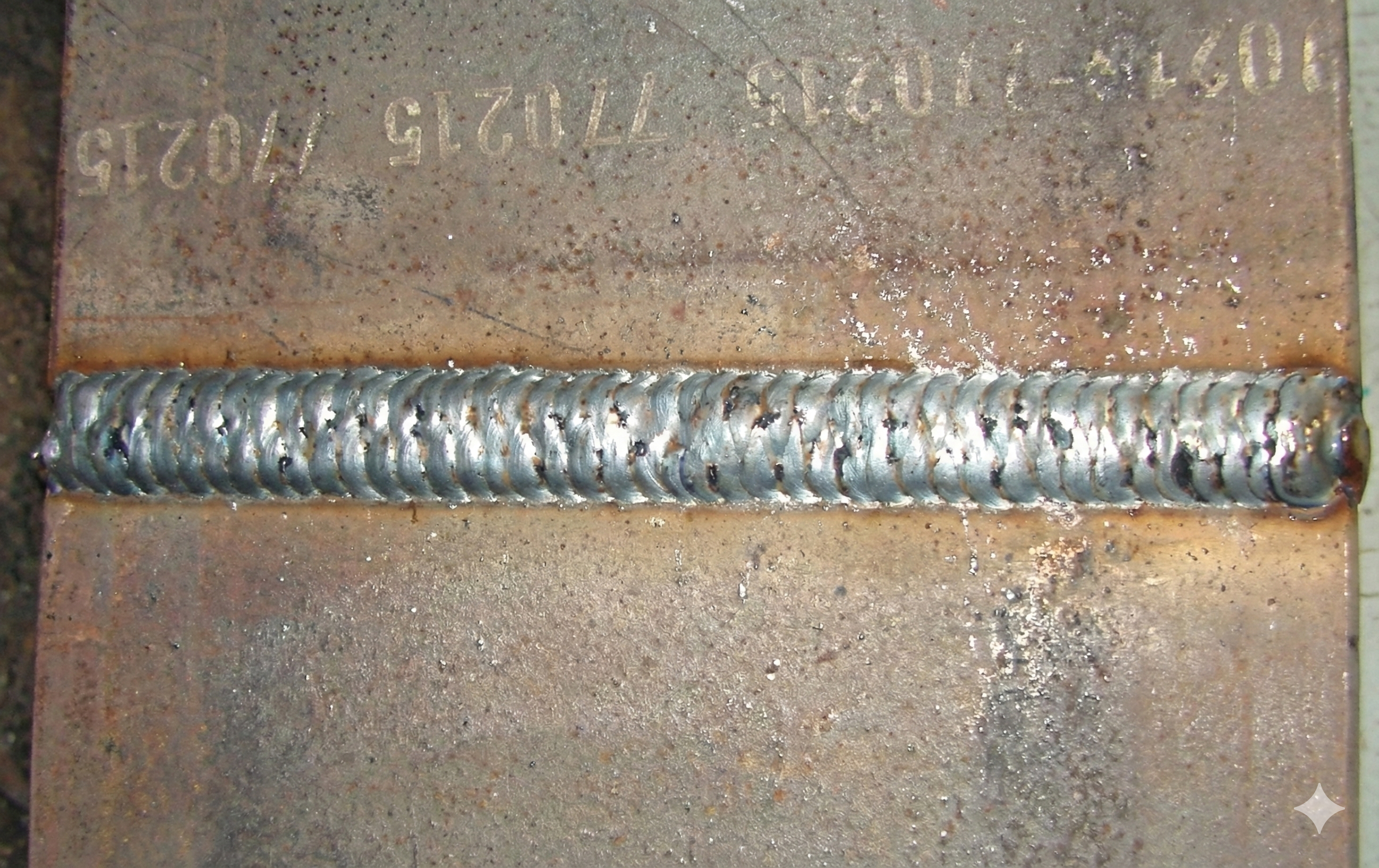

Welding Qualification

Weld procedure & welder qualification testing as per ASME, AWS and ISO standards.

Specific Test Performed	Test Method
Weld procedure qualification / Welder performance tests	ASME Sec IX AWS D1.1 / D1.1M AWS D1.6 / D1.6M Relevant ISO welding standards

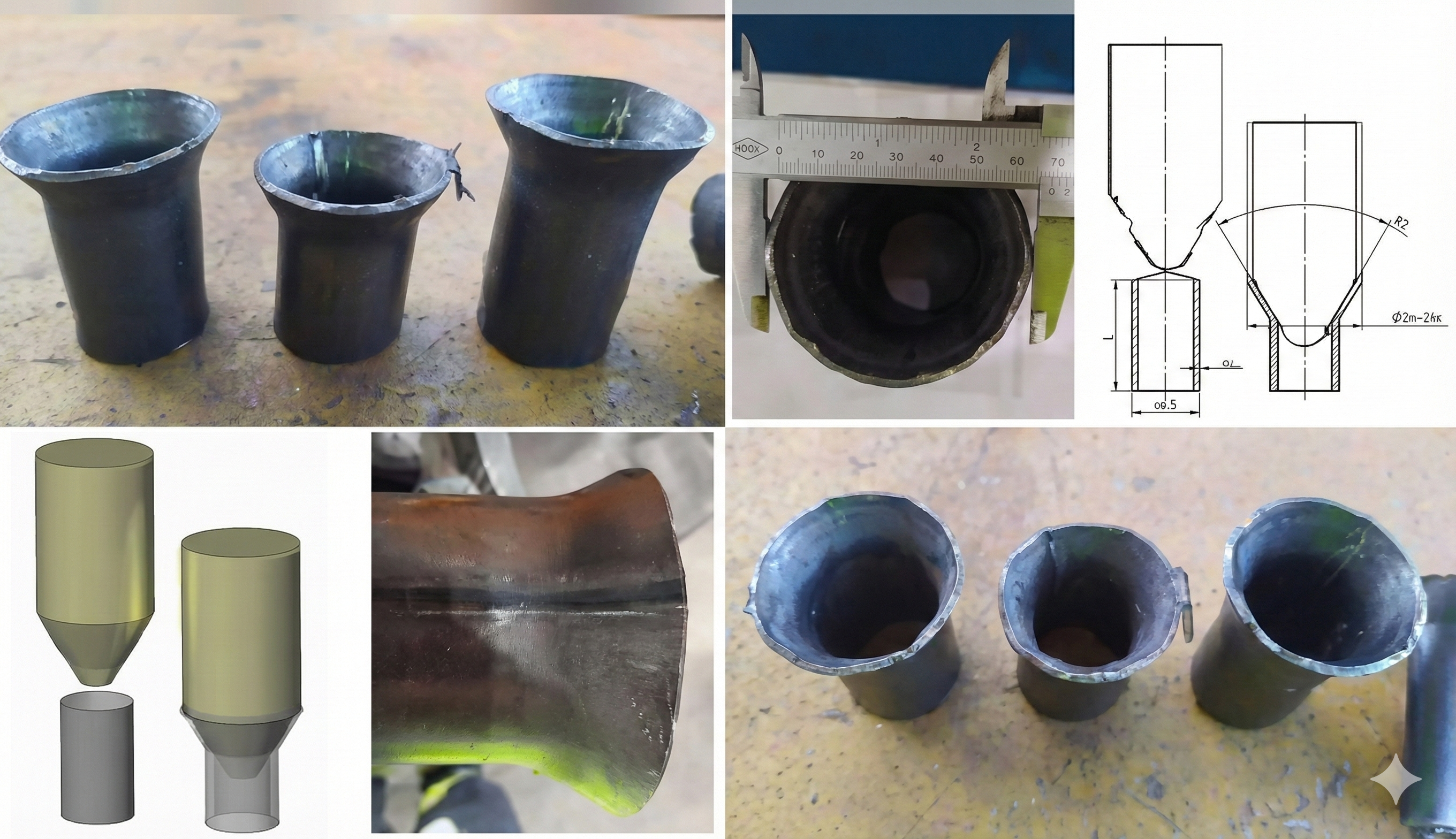

Flaring Test

Used to assess a tube’s ability to expand without cracking during flaring operations.

Specific Test Performed	Test Method
Flaring / Expansion Test	Applicable ISO / ASTM procedures as per material and spec

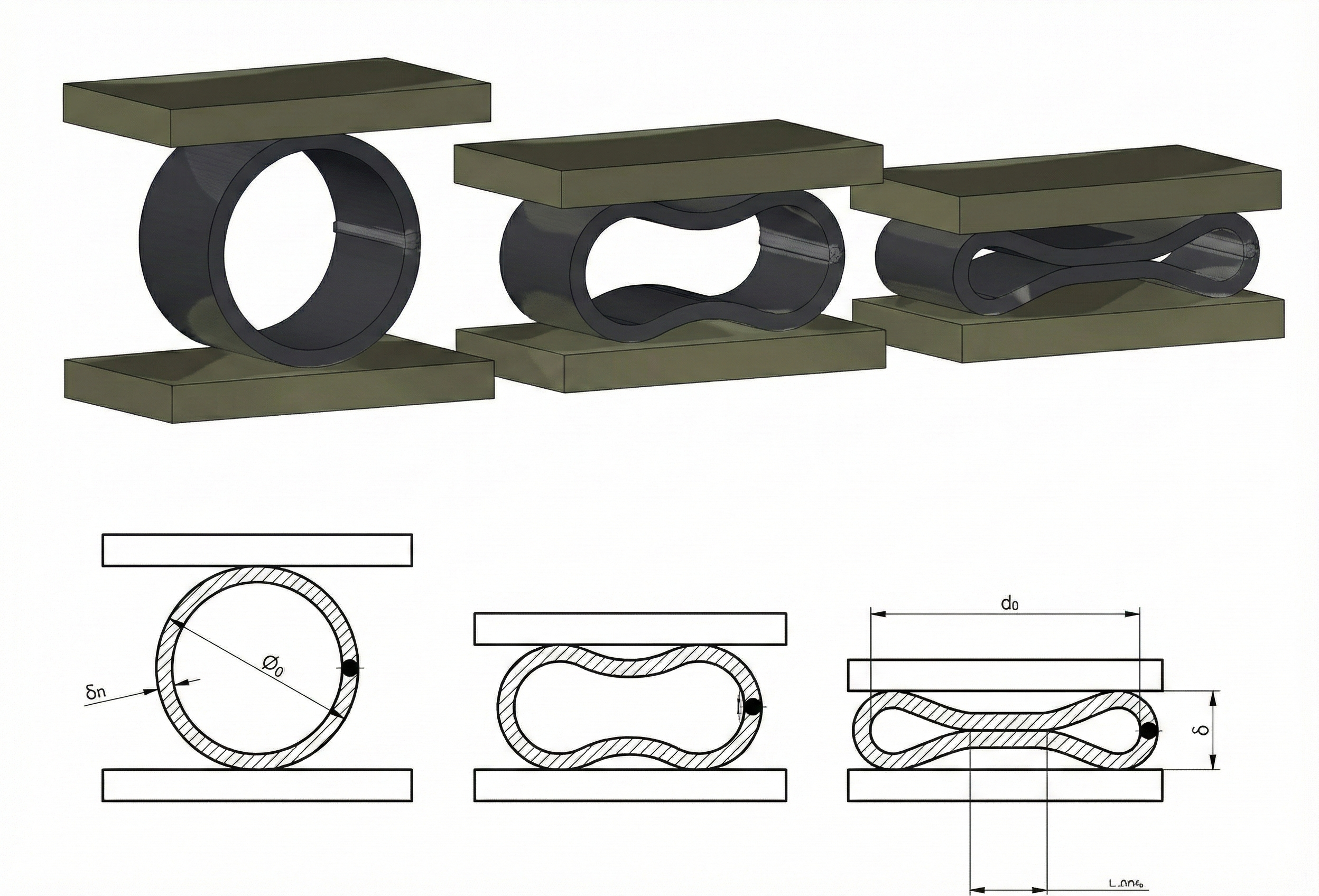

Flattening Test

Checks ductility and strength of pipes / tubes by compressing between plates.

Specific Test Performed	Test Method
Flattening / Ductility check	Relevant ASTM / ISO methods depending on tube material and spec

Fracture Test

Determines material behaviour and resistance when subjected to breaking forces.

Specific Test Performed	Test Method
Fracture Mechanics / Failure Analysis	ASTM standard fracture test methods and relevant ISO procedures
